Supernova Rogue 8.5" LED Driving Lights (3 pieces) + Wiring Harnesses $889.00

Supernova Rogue 8.5" LED Driving Lights (3 pieces) + Wiring Harnesses

$889.00

Free Shipping - Orders over $89 in Australia
Lifetime Warranty
30 Days Free Returns

STAND OUT

Defined DRL Array

RENOWNED BUILD QUALITY – UNPARALLELED OUTPUT

CREE 5W XTE LEDs – Improved 1 Lux @ 1020M

What's Included

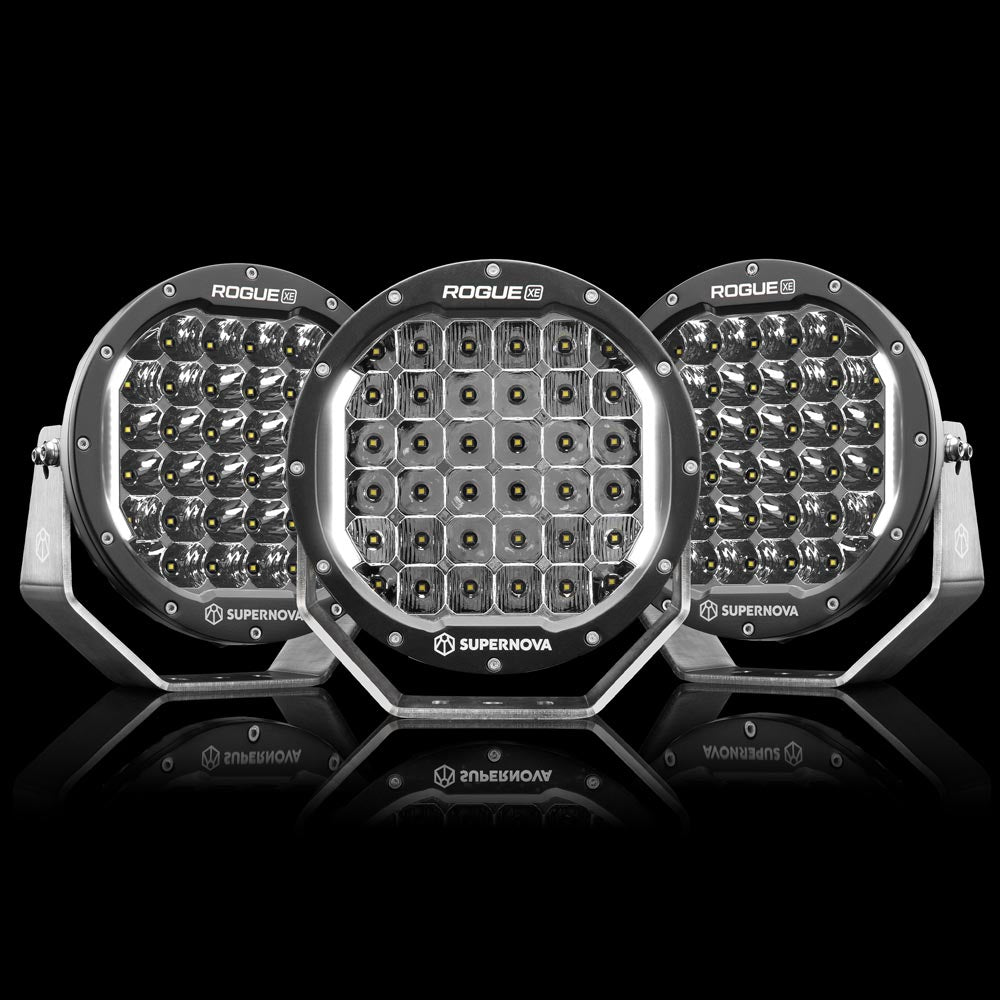

3 x Supernova Rogue 8.5 LED Driving Lights
3 x Stainless Steel Security Torx Mounting Kits

3x Vibration Isolation Gasket
1 x Fast Fit Dual Wiring Harness - Direct Install with a fully configured harness. Battery Terminals, Fuse, Relay, In Cabin Isolation Switch and H4 + HB3 high beam connections.

1 x Fast Fit Single Wiring Harness - Direct Install with a fully configured harness. Battery Terminals, Fuse, Relay, In Cabin Isolation Switch and H4 + HB3 high beam connections.
Free Delivery

Please Note: The Deutsch connector features 3 wires (2 for main beam, 1 for DRL), the DRL wire (yellow) can be connected to an auxiliary power source (eg. parkers) on your vehicle for day time functionality.

UNMATCHED VOLUME, UNPARALLELED BUILD QUALITY.

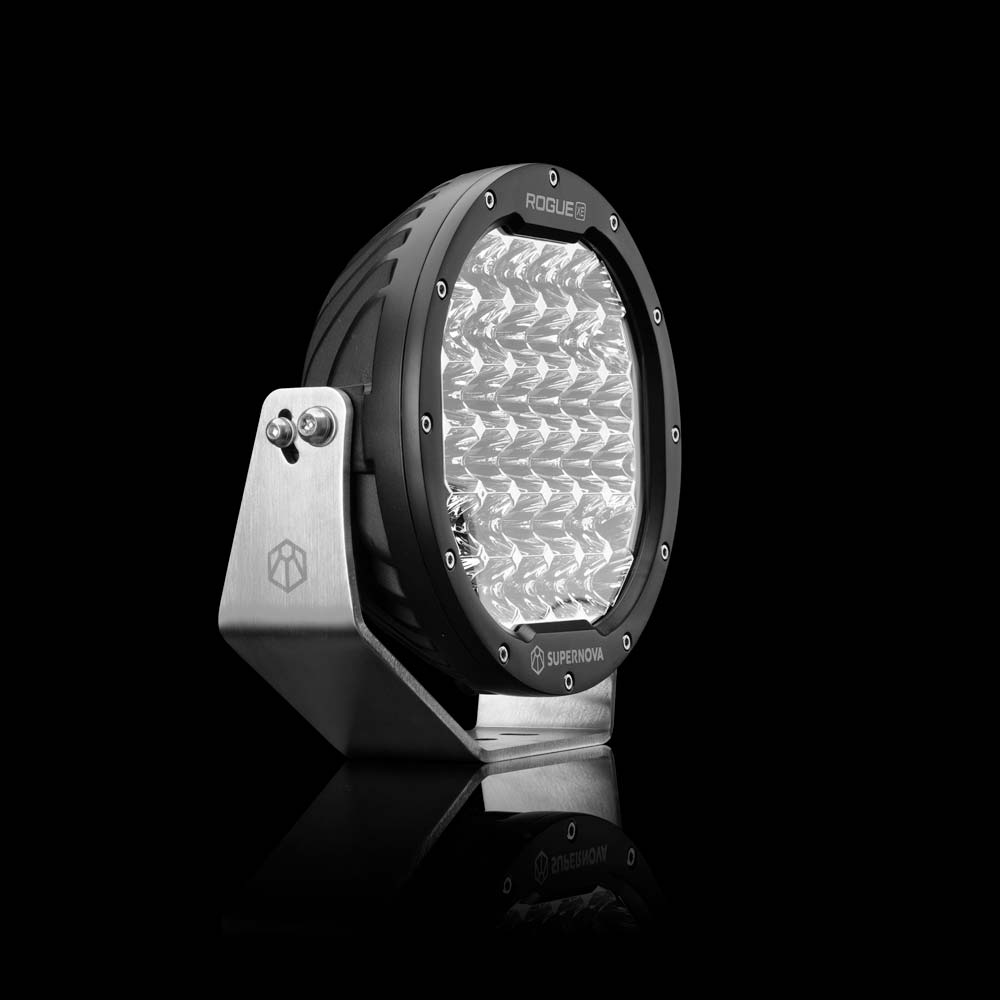

Our popular, compact 6″ Quad light swiftly became iconic for its maximum light output and robust build quality, yet desire grew for a full sized, unrestricted variant. Born with the same DNA, the wheel didn’t need to be reinvented, but it has been turned up to eleven with 5W U.S.A CREE LEDs and distinctive daytime running lights. Zero dead spot output pattern is achieved with 36 high output 5W CREE LEDs consisting of 16x 5º hyper spot and 16x wide spread, highly polished reflectors.

LENS	GE Lexan Lens 3mm
LED CHIPS	U.S.A CREE X-Lamp XTE 5W - Maximum Efficacy (lm/W) 178 lm/W - 36pcs Each
FINISH	DuPont Midnight Paint
FASTENERS	316L Marine Stainless With Torx Security Bolts
DRL	2pcs Per Light (Sides) - COB LED
WATERPROOF RATING	IP69K
WARRANTY	Lifetime
1 LUX DISTANCE	1020- Visible Distance up to 1.8km
INPUT VOLTAGE	11-30V DC
INPUT CURRENT	Nominally 9.0A Each (+/- 5%)
LUMEN MAINTENANCE	LM-80 50,000 Hours
LUMENS	36,000 (Three Pieces)
INCLUDED WIRING HARNESS	(Two Supernova Fast Fit Dual Harnesses. Negative/Positive switched headlight compatible. 14 AWG)

Dialled Up, Dialled in Efficiency. With many exaggerated power ratings and lumen outputs we are often asked; what is the input power? To that we ask, is the output power rating the defining measurement of output performance? Efficiency bottle necks in the weakest link. Think LED driver efficiency, LED chip efficiency, optical reflection coefficient, lens transparency, thermal management. Genuine branded components safeguard diminished light output.

95% efficient Boost LED Driver
4 stage thermal management + oversized heat sinks
High bin rate CREE 5W XTE LEDs
Chemically polished reflectors
3mm General Electrics Lexan Lens – Over 200x impact resistance of glass, superior light transmittance.

RUGGED NEVER LOOKED BETTER

Over, under and reverse current protection.
GE Lexan Lens – Non fading, virtually indestructible
100% electromagnetic (EMC) and radio frequency interference (RFI) protected
IP69K 3200psi hot water jetting sealed and certified.
Gore breather valve – pressure equalisation, anti fogging.
Boost LED driver wide range 11-30V DC input.
Dupont high UV and abrasion resistive paint.
316 Marine stainless steel bracket and fasteners.

LIFETIME WARRANTY

Over cracking, yellow fading lenses? Black anodised lights turning grey? Rogues maintain their look for years to come no matter the conditions. An Aussie backed life time warranty provides peace of mind, no matter the usage. This is only achievable with use of premium tier components and manufacturing techniques. Every detail has been accounted for and further exceeded. The virtually indestructible GE Lexan lens guarantees no discolouring or cracking after years of sun abuse, likewise the DuPont paint maintains a deep black finish for years to come.

IP69K WATERPROOF RATING – SUPERFLUITY

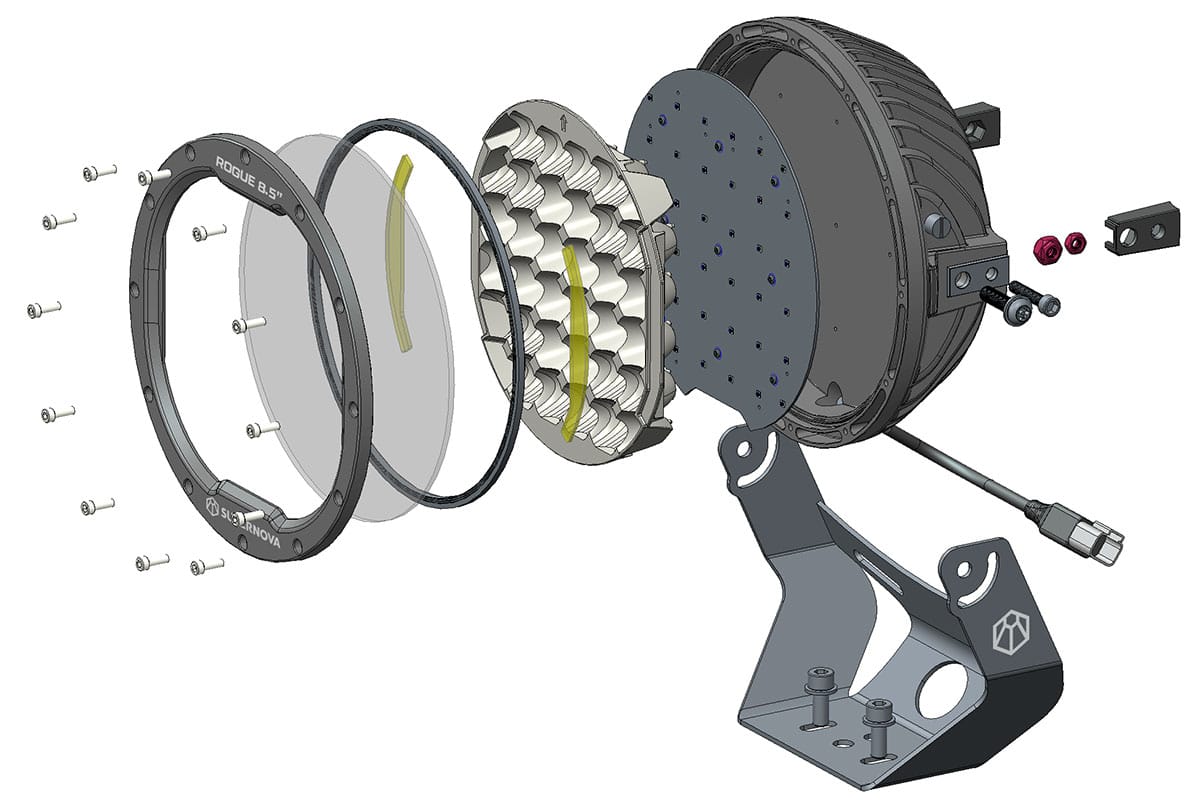

We set out to offer a driving light which is virtually impenetrable. The first step was replacing silicone glue sealing to a custom O- Ring seal. Silicone sealing offers initial protection, throw in dust, heat and pressure washing and over time they are susceptible to dry rot, cracking, shrinking and becoming static. Our solid O – Ring design utilises a polymer which flexes during heat variations and pressure changes whilst being firmly compressed into place with a 12 bolted front plate to maintain constant tension.The end result; Surpassing standard IP69K rating of 1450PSI water jetting with a staggering 3200PSI at 80ºC. Give it all you’ve got and marvel as the light stands up to any weather condition.

WIRING HARNESS + ANTI THEFT BOLTS INCLUDED

Our fast fit dual output harness stream lines install. Integrating directly with positive and negatively switched headlights out of the box. Aiding in theft prevention, stainless steel security bolts are utilised through out as standard. Security Torx tool included.

UPDATED V4.0 DESIGN

Done away with the two small SMD LEDs per day time running light a new full size COB LED provides increased DRL brightness and visibility. A striking 6000K hyper-white light when illuminated, and solid yellow appearance when switched off. Updated bracket design brings a rigid approach to vibration reduction, featuring anti theft security torx bolts as standard.

SEE THE WIDER PICTURE. GO ROGUE.

Total lumen output does not always dictate better clarity. Rogue 8.5s feature high bin rate, U.S.A CREE XTE 5W LEDs which consistently emit an accurate 6000K colour temperature and a CRI of 87+. Partnered with a true driving light output configuration that consists of 50% flood reflectors, these Rogues are more of a flood light which reach leading distances than a convention spot light that narrowly focuses light to a centre spot to reach similar distance.
